This is our lower control arm set for air bags. It's basically the same as the regular 1" shorter per side arms and it has the bag plate with mounting holes for the bags.
**** These now come with cam bolt sets ****
These are tubular control arms made for the 03-11 Ford Crown Vic bolt in aluminum crossmember. They are 1" shorter per side. They mount directly to the stock aluminum crossmember the same as the factory arms. These have a plate mount for air bags. They are made from 1.25" O.D. DOM tube with a .250" wall. All bushing outer and inner sleeves are also made with DOM tube. The arms are fully tig welded by me personally. All machine work and welding is done in house by me or my son Casey, a CNC machinist who turns all our bushings as well as cutting and bending tubing. These are made in a jig for repeatable accuracy. We have 20 plus years experience making tubular control arms. Our history is in tube chassis and control arms made mostly for air bags. We have made tube arms for all kinds of trucks both full size and any brand or year model of minitruck made. These are shown in bare steel to show the heat signature of the welds. Generally we prefer to use an etching primer to prevent rust. We will soon be offering powdercoating.
FEATURES:
** Fully tig welded
** Energy Suspension graphite impregnated polyurethane bushings
** Same balljoints that fit the factory arms.
** Comes with cam bolts for mounting and stainless spacers and washers for the struts.
** Can be used with any bolt in air bag.
** Bolt in just like the factory arms.

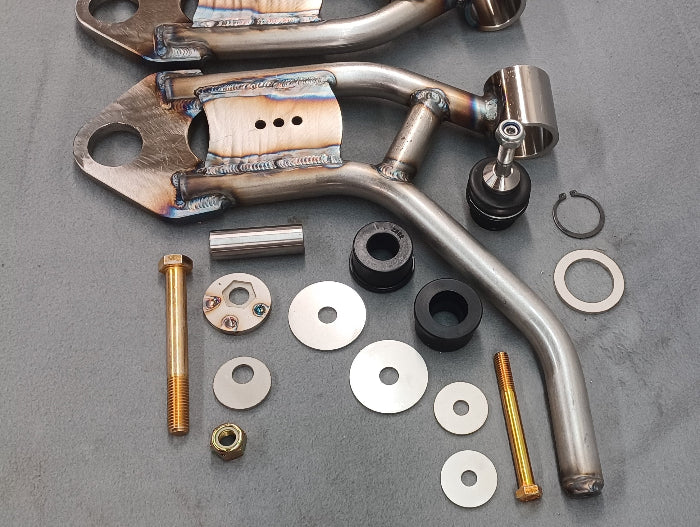

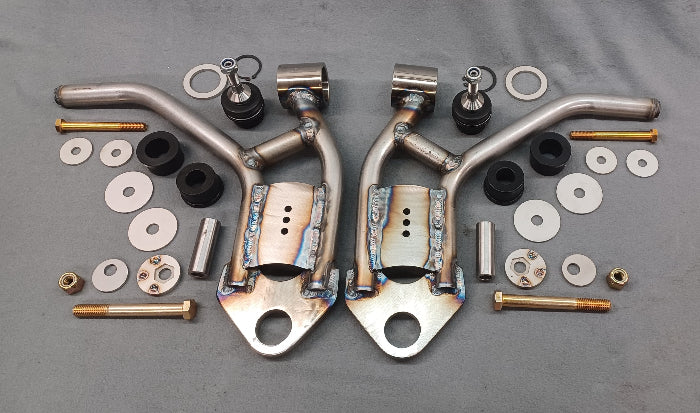

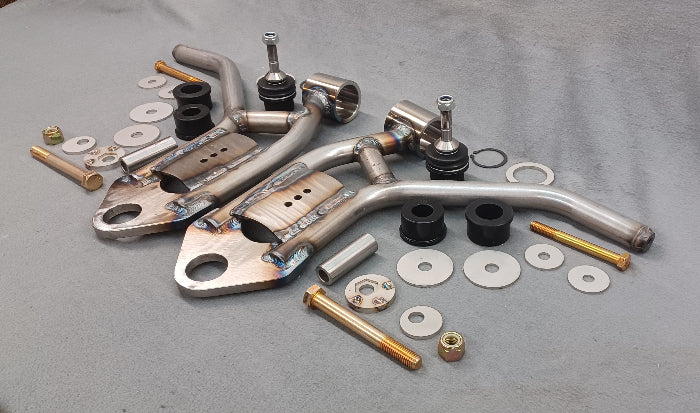

Below is a packing list of what's in the boxes:
Lower control arms box is 18 x 18 x 6 and weighs 36lbs
Two lower control arms Two CV lower balljoints #800141 (same as factory arms) Four Energy Suspension poly bushings #2892 Two inner sleeves for poly bushings, 1" od DOM, .625"/16mm id. Two balljoint spacer rings (go on top balljoint after pressing in, then snap ring. Two balljoint snap rings Four 2.5" diameter .125" thick stainless washers. Go on each side of each poly bushing. Two 1.5" diameter .250" thick stainless washers for rear bushing. Two 1/2-13 x 4" grade 8 bolts for rear bushing. Two 5/8-11 x 5.5" grade 8 bolts for lower front bushing. Two cam washers large. Two cam washers small. Two 5/8-11 grade 8 locknuts
Here is a video explaining the parts: https://www.youtube.com/watch?v=FpRMrGvEARY&t=11s
Please let us know if you have any questions, thanks.
