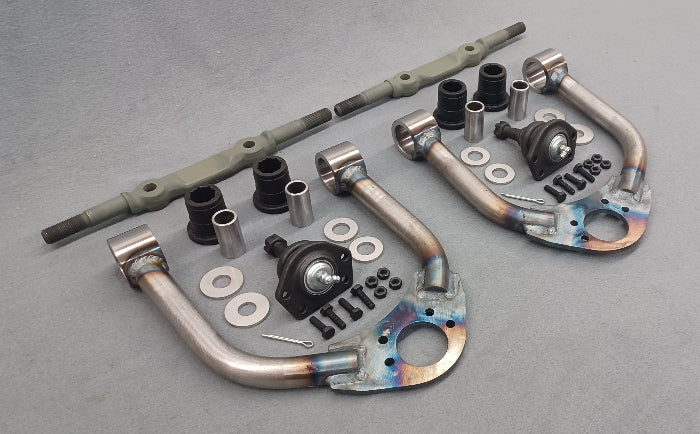

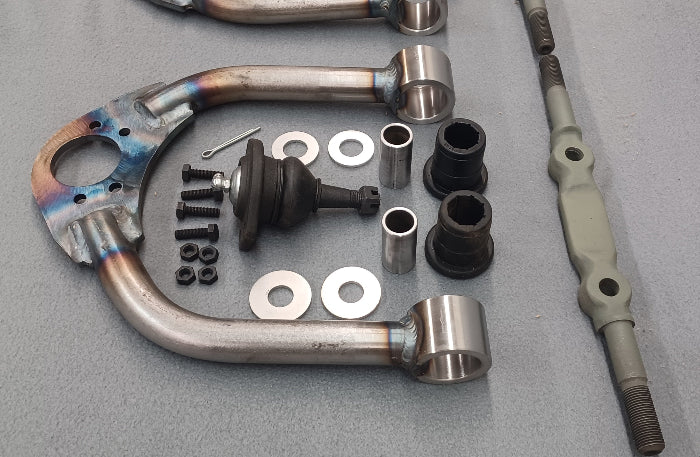

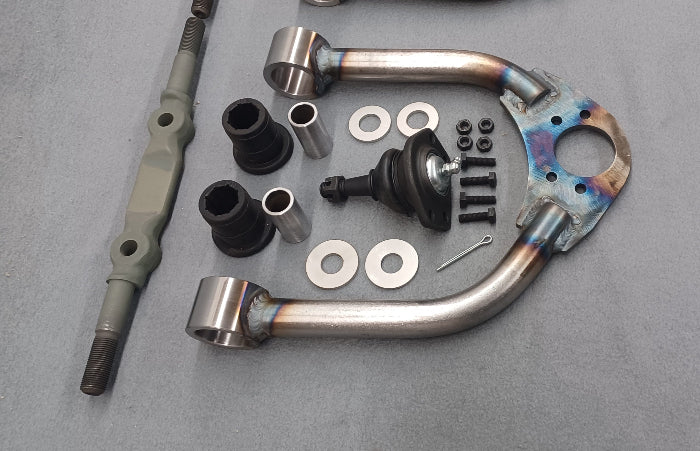

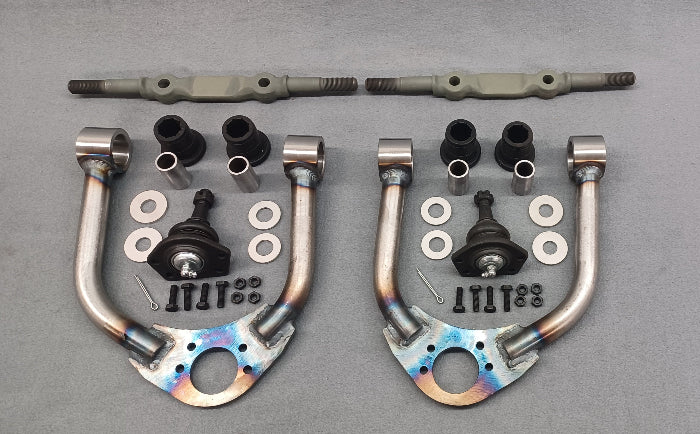

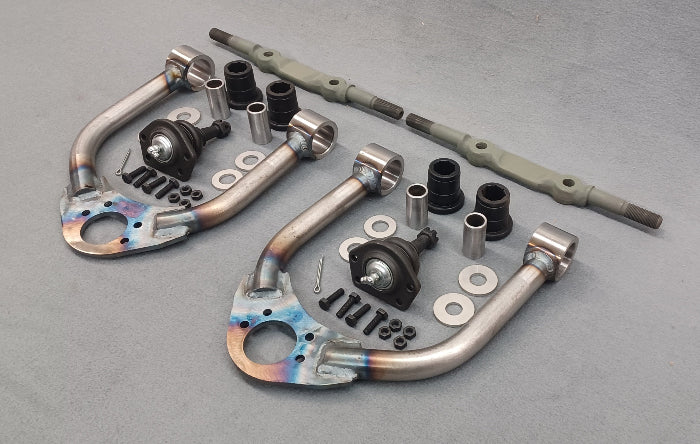

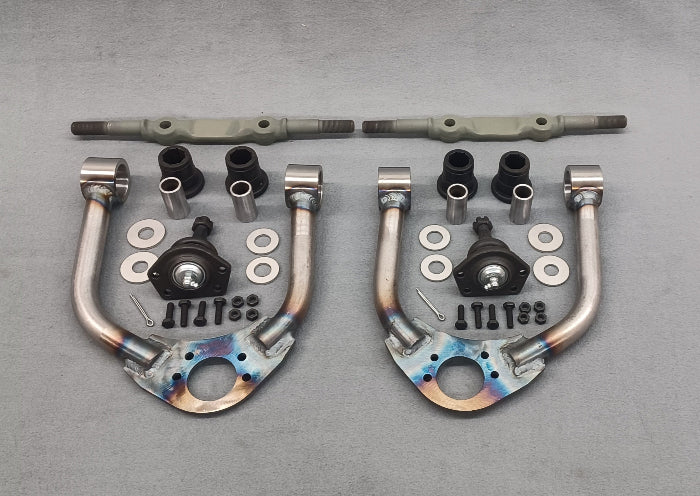

This is our 1986-1993 Mazda B series upper control arm set for bags. This listing is for the UPPER ARMS ONLY. This set comes with S-10 style balljoints, cross shafts and poly bushings. The cross shafts are offset for more adjustability on bagged trucks.
**** THE S-10 BALLJOINTS FIT THE MAZDA SPINDLES ****

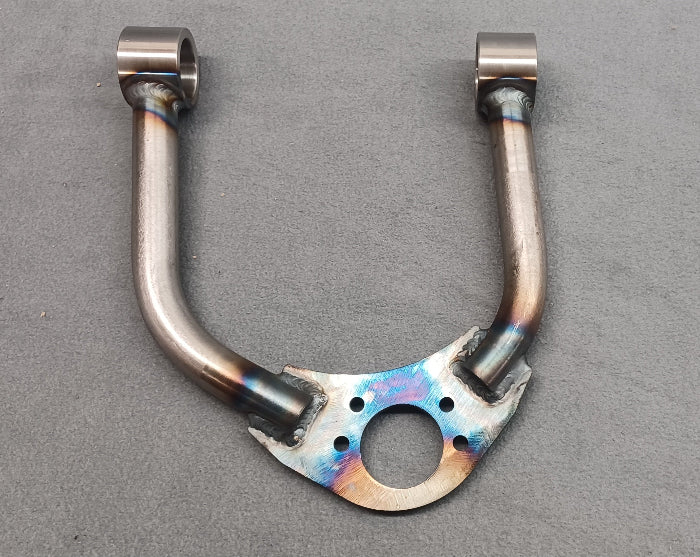

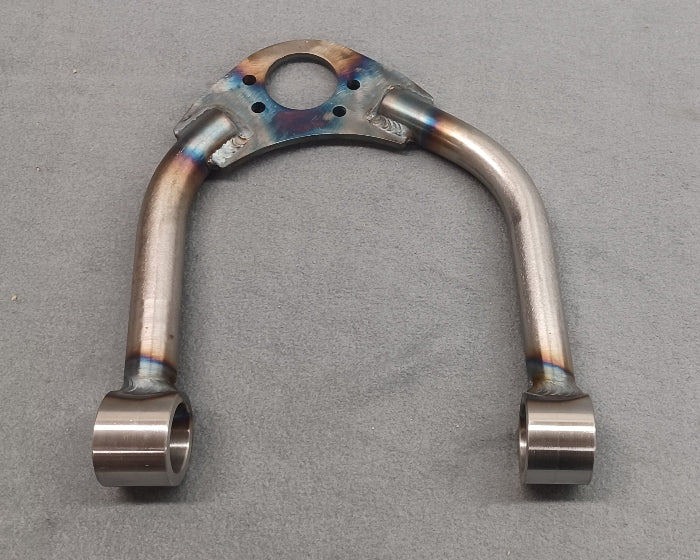

The main tubes are 1" od DOM with a .188" wall thickness.
They also come with Energy Suspension graphite impregnated polyurethane bushings. Yes those are better than your average Daystar or Prothane bushings as they are graphite impregnated and will not squeak and never need grease. The part number is 3293 and can be purchased from us or any place that sells Energy Suspension products. That part number is used in S-10 upper arms as well as many other aftermarket Energy SDuspension sets for other GM cars.
The cross shafts are a hybrid S-10 style that are offset. So they can be rotated to pull the arm in or rotate it out for more adjustment with large wheels.
The set is available with S-10 style balljoints for more travel. The S-10 balljoints fit the stock Mazda spindles or drop spindles. **** We also have a separate listing for this set with stock style Mazda balljoints. **** **** We will also offer this set with Chrysler style screw in balljoints. **** **** We will also offer this set with Uniballs ****
