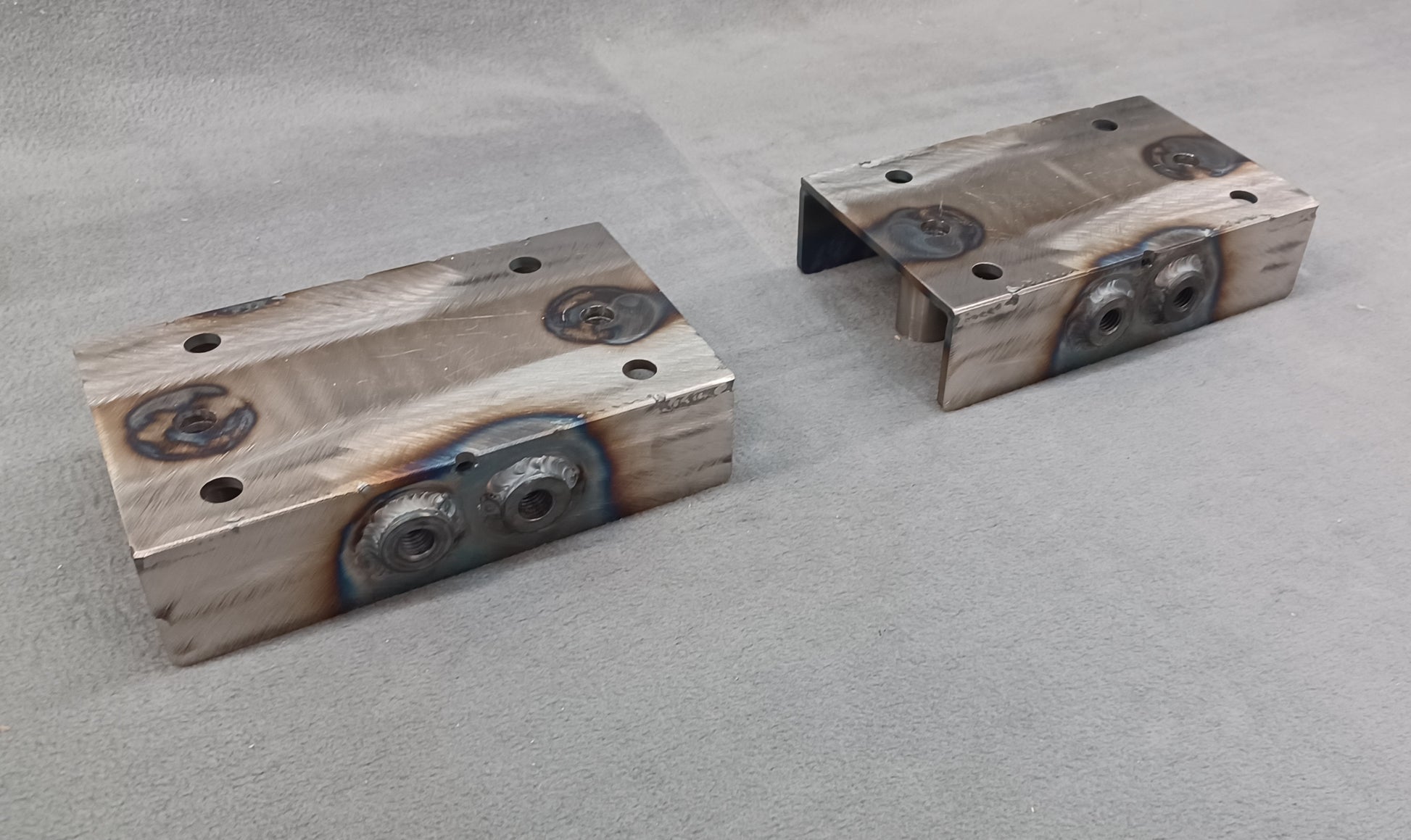

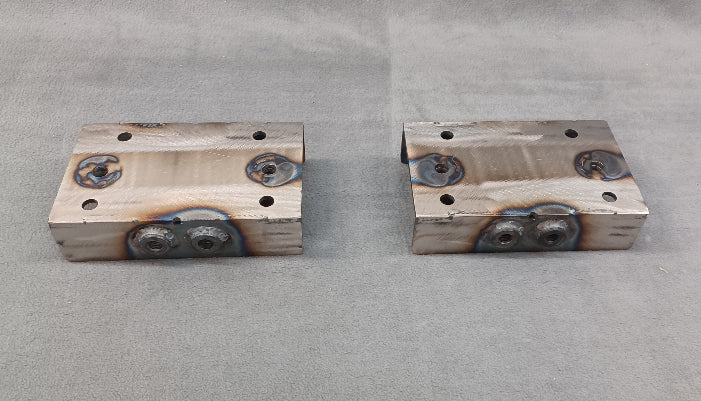

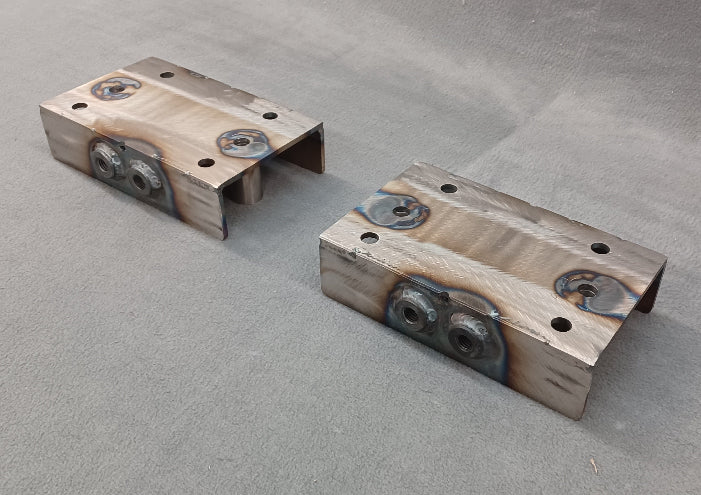

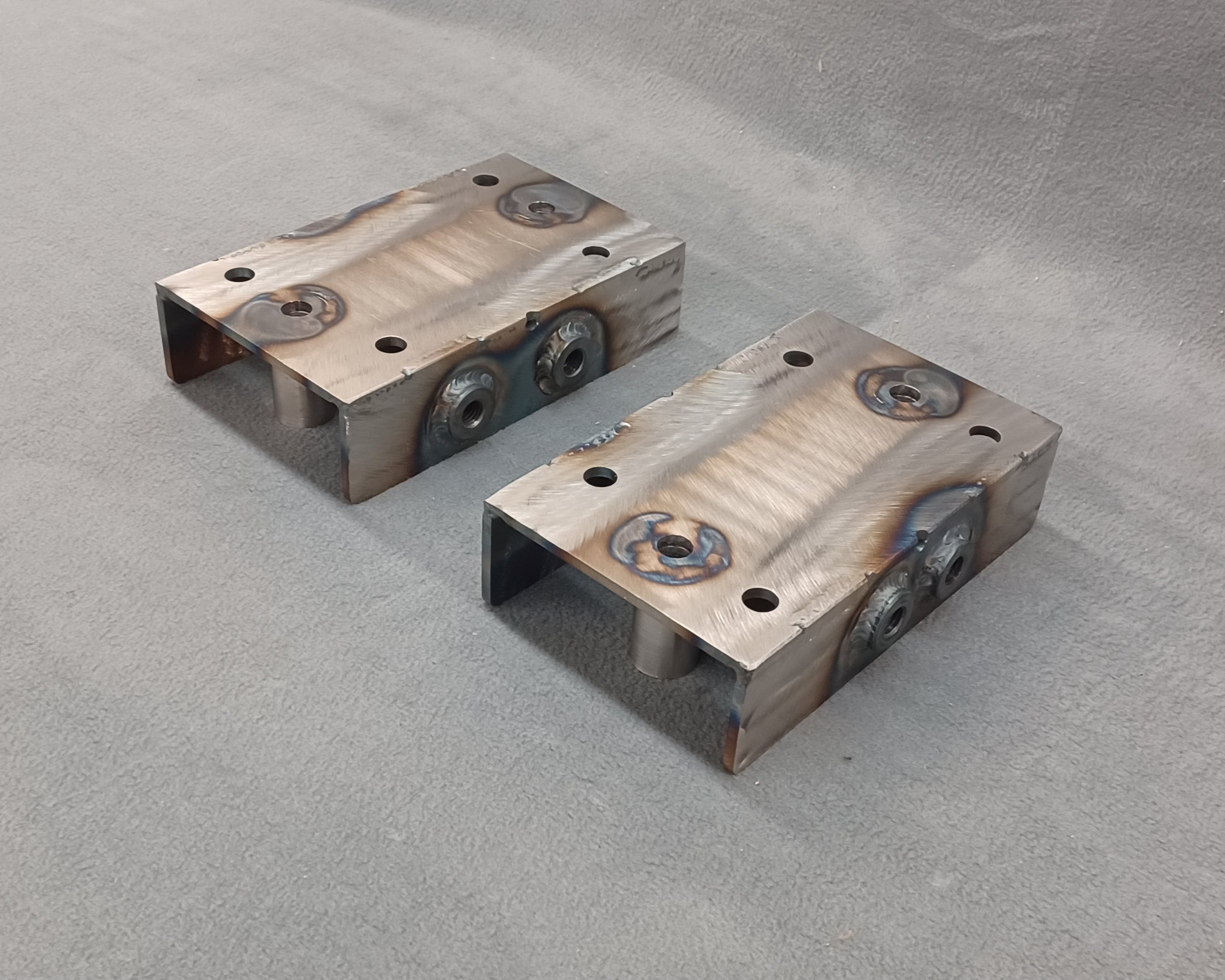

This is the listing for the frame boxes that fit the 65-79 chassis and bolts into the frame and then the crossmember center section bolts in between these boxes. This is part #501 and works with parts in the 500 series.

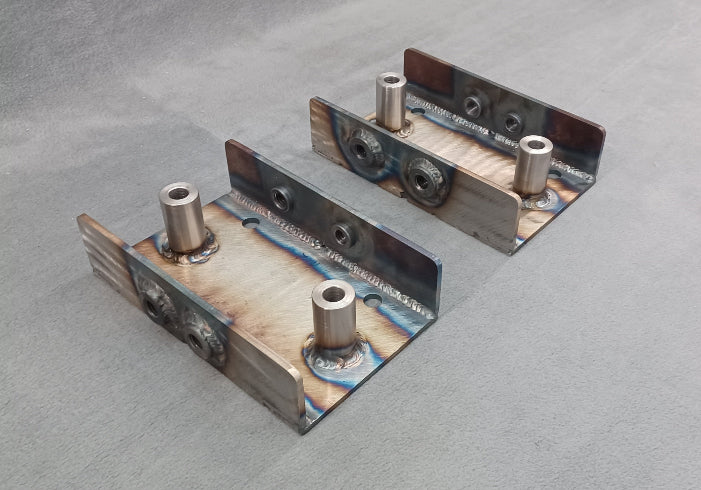

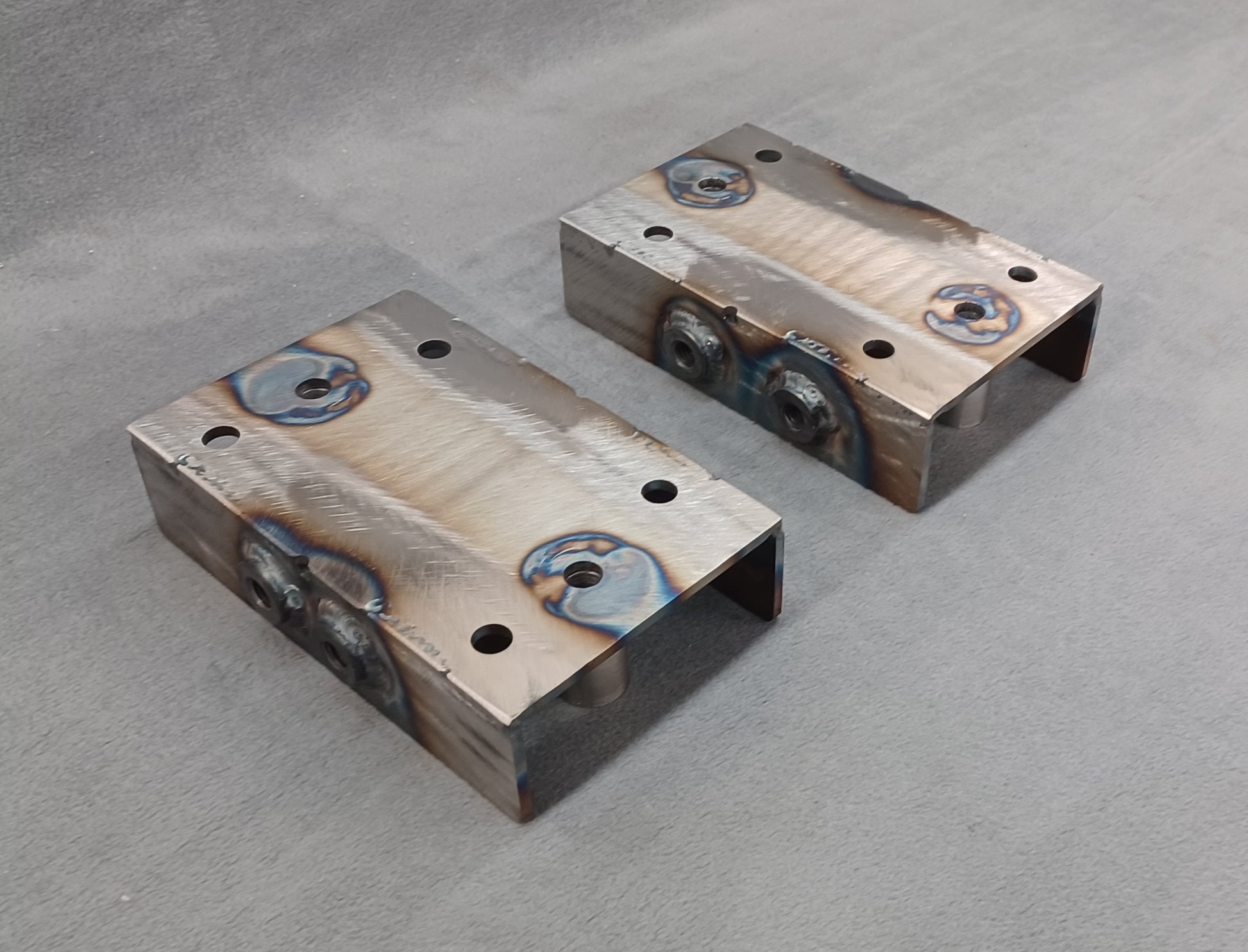

**** THIS LISTING IS FOR A PAIR OF BOXES (BOTH SIDES) ****

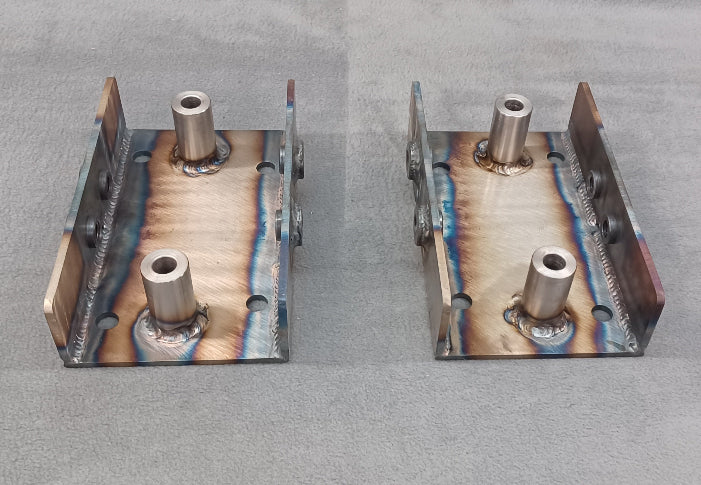

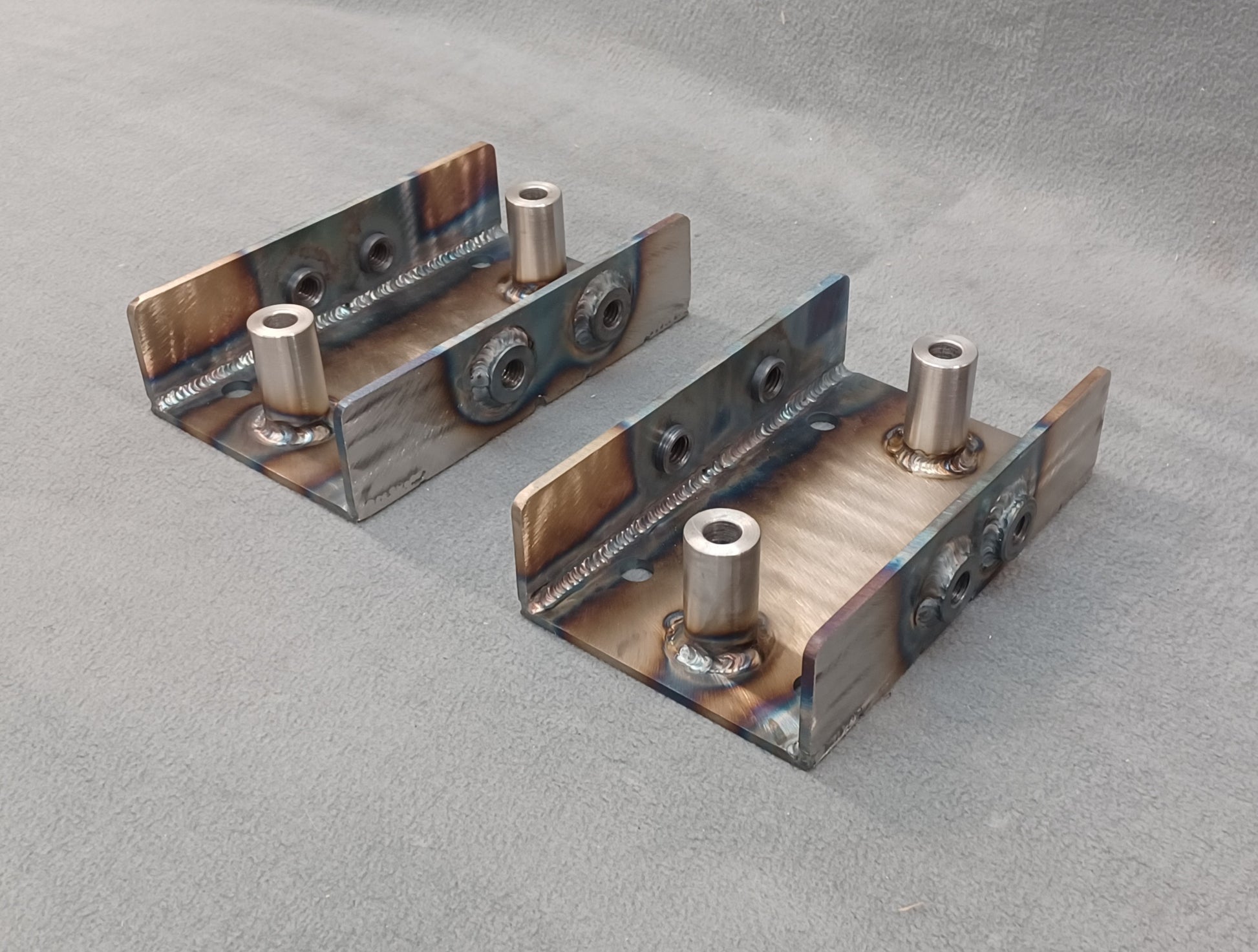

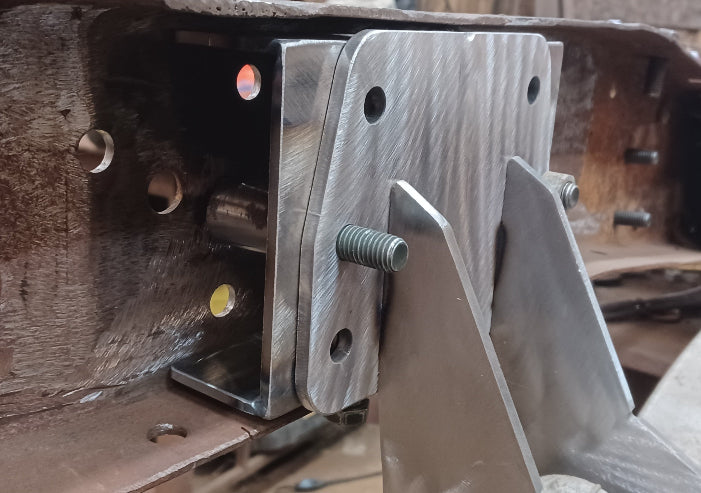

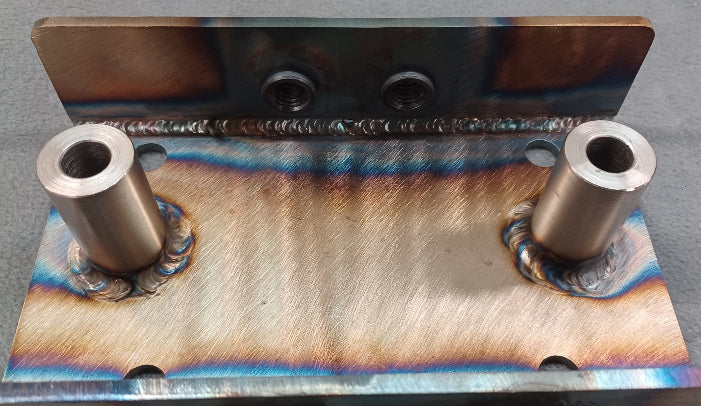

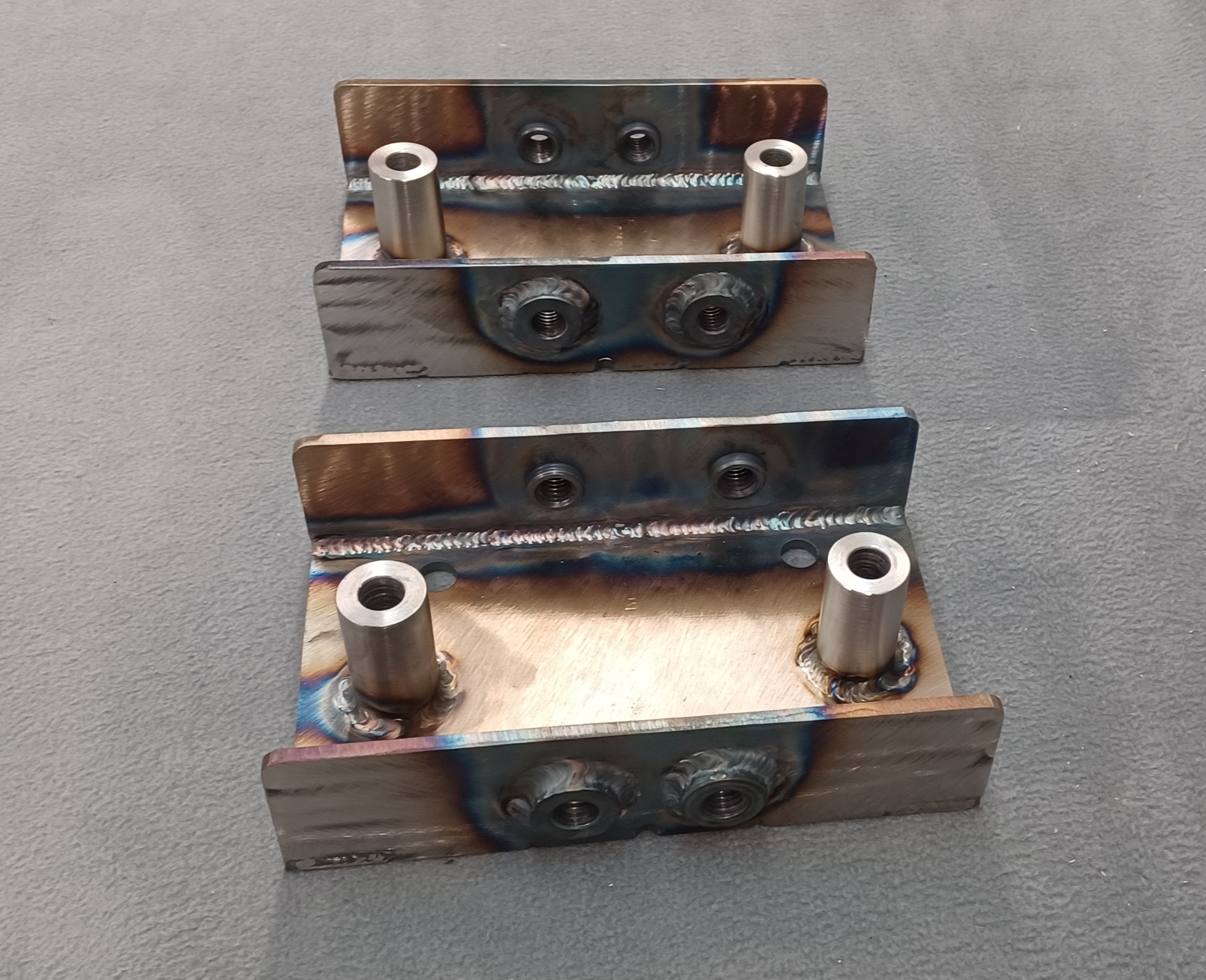

These boxes include crush sleeves in the middle holes to keep the frame straight and not bow in. The use of two lower bolts and two upper bolts along with the 6 bolts thru each side of the frame assures a secure connection to the frame for your CPO narrower crossmember. You can choose to weld these in also. They are made with .188" thick HR P&O plate, laser cut with tabs to allow them to be assembled accurately. They are tig welded. The inner crush tubes are 1" DOM tube with a .250" wall leaving a .500" hole.

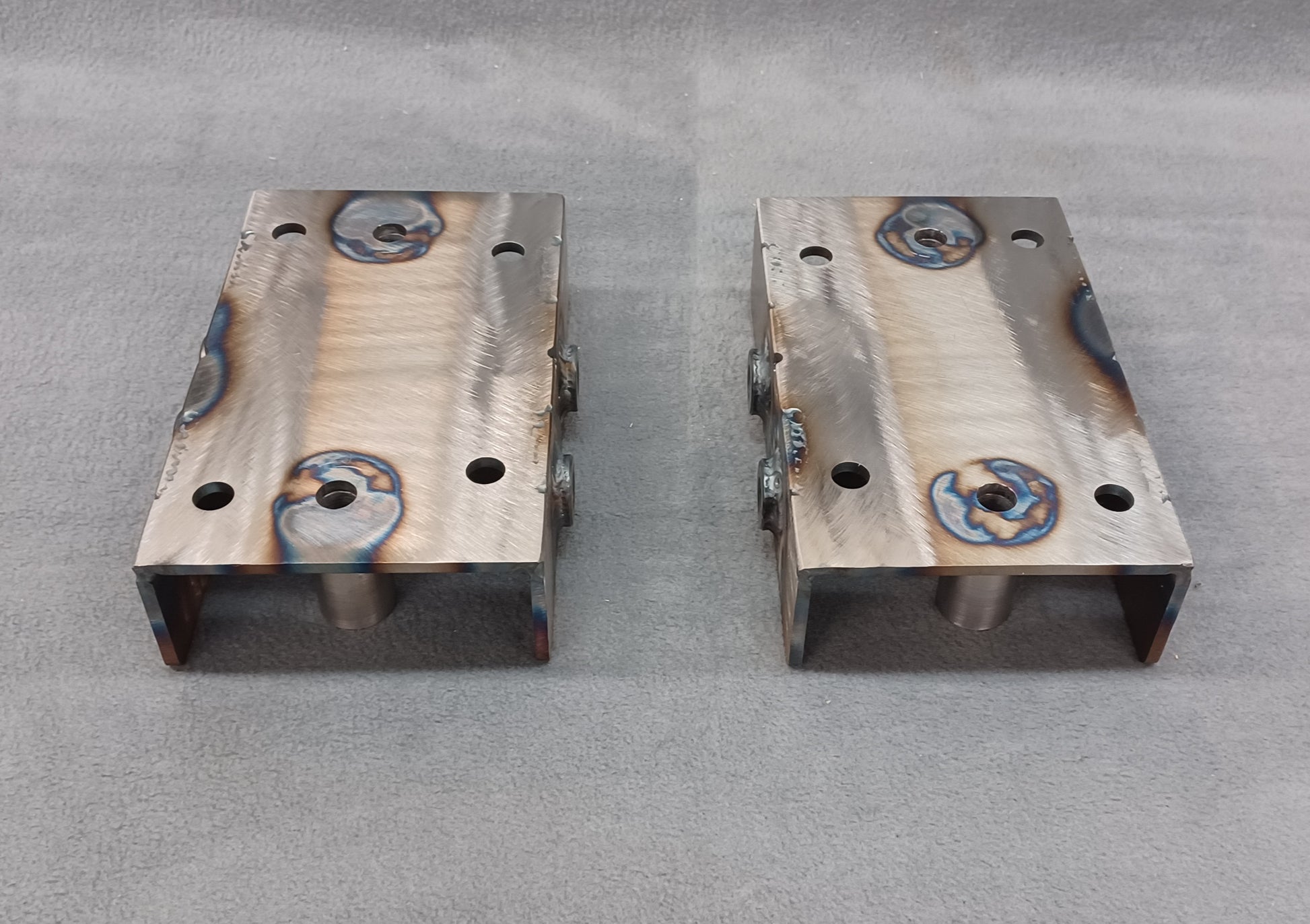

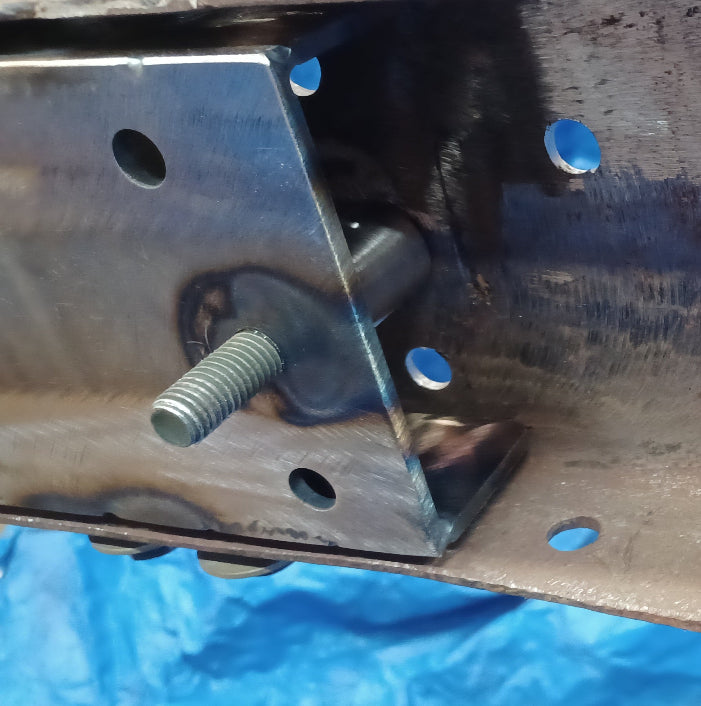

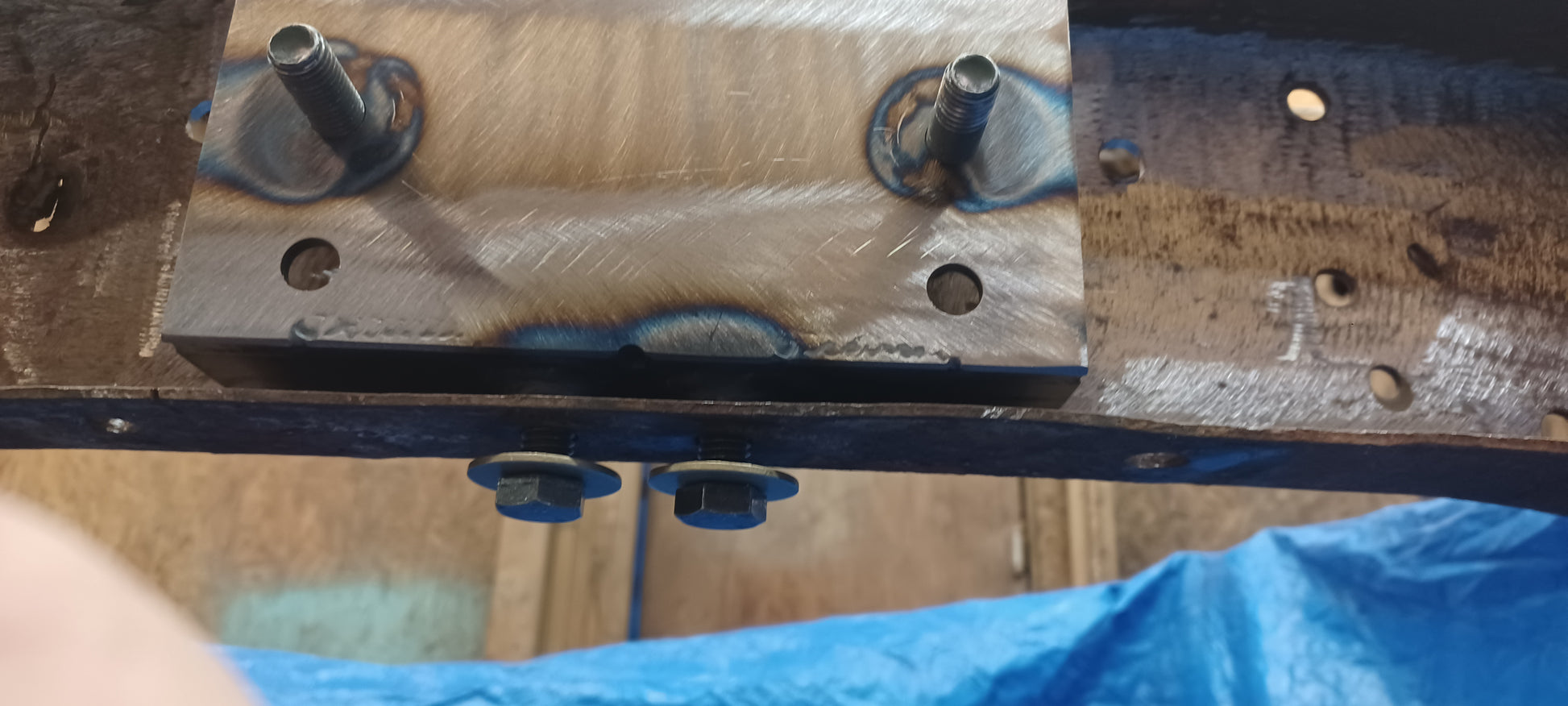

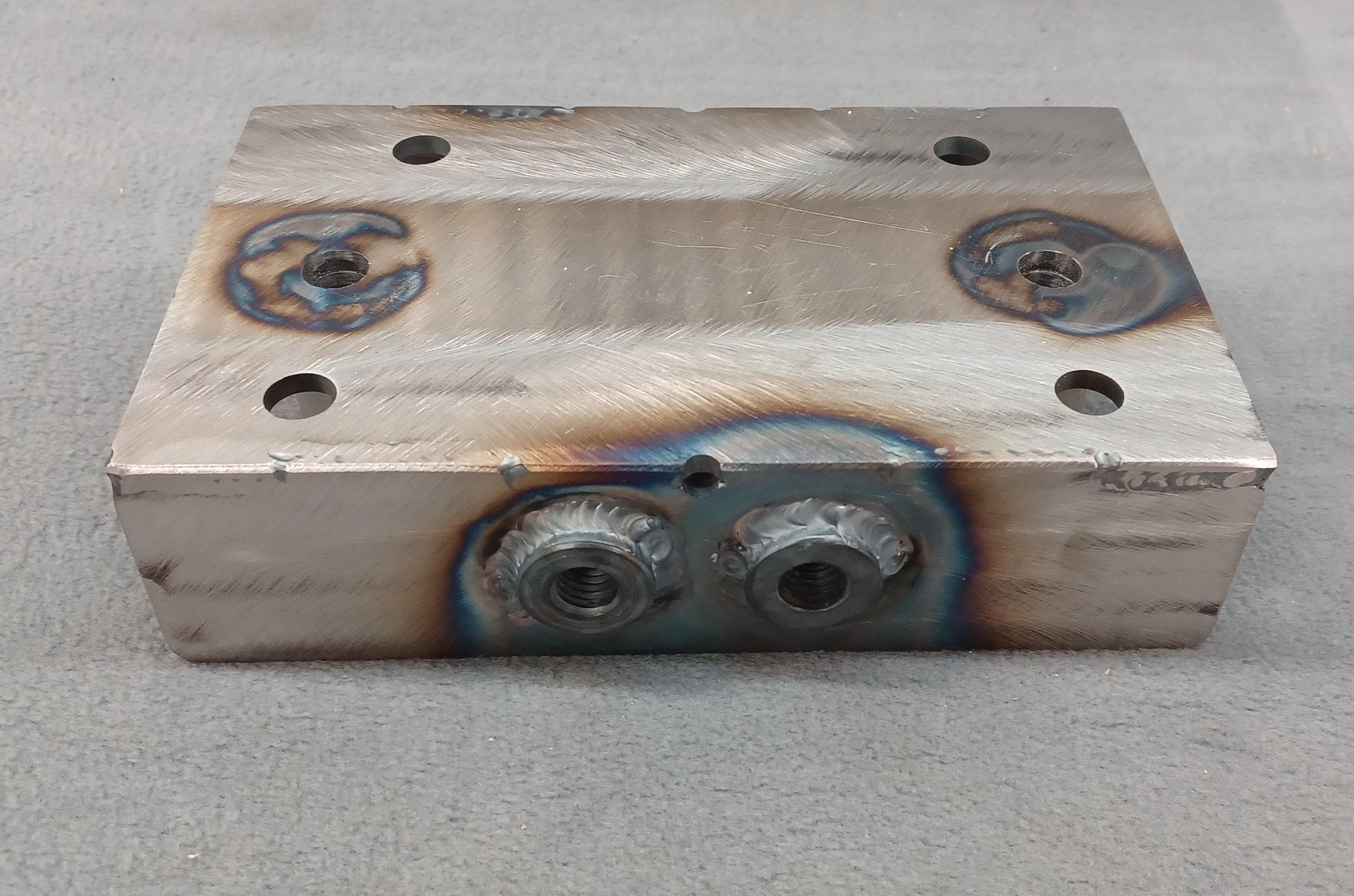

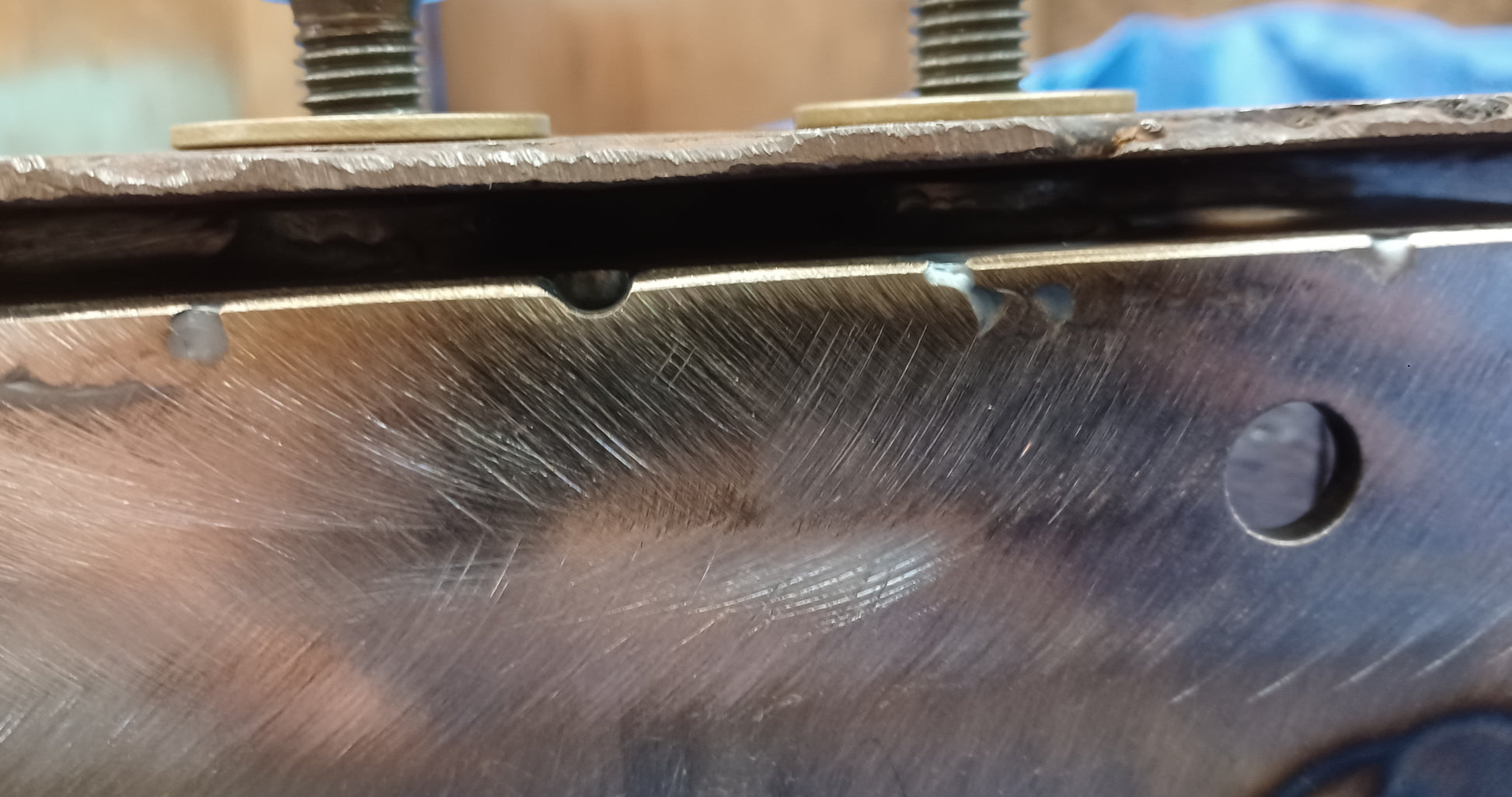

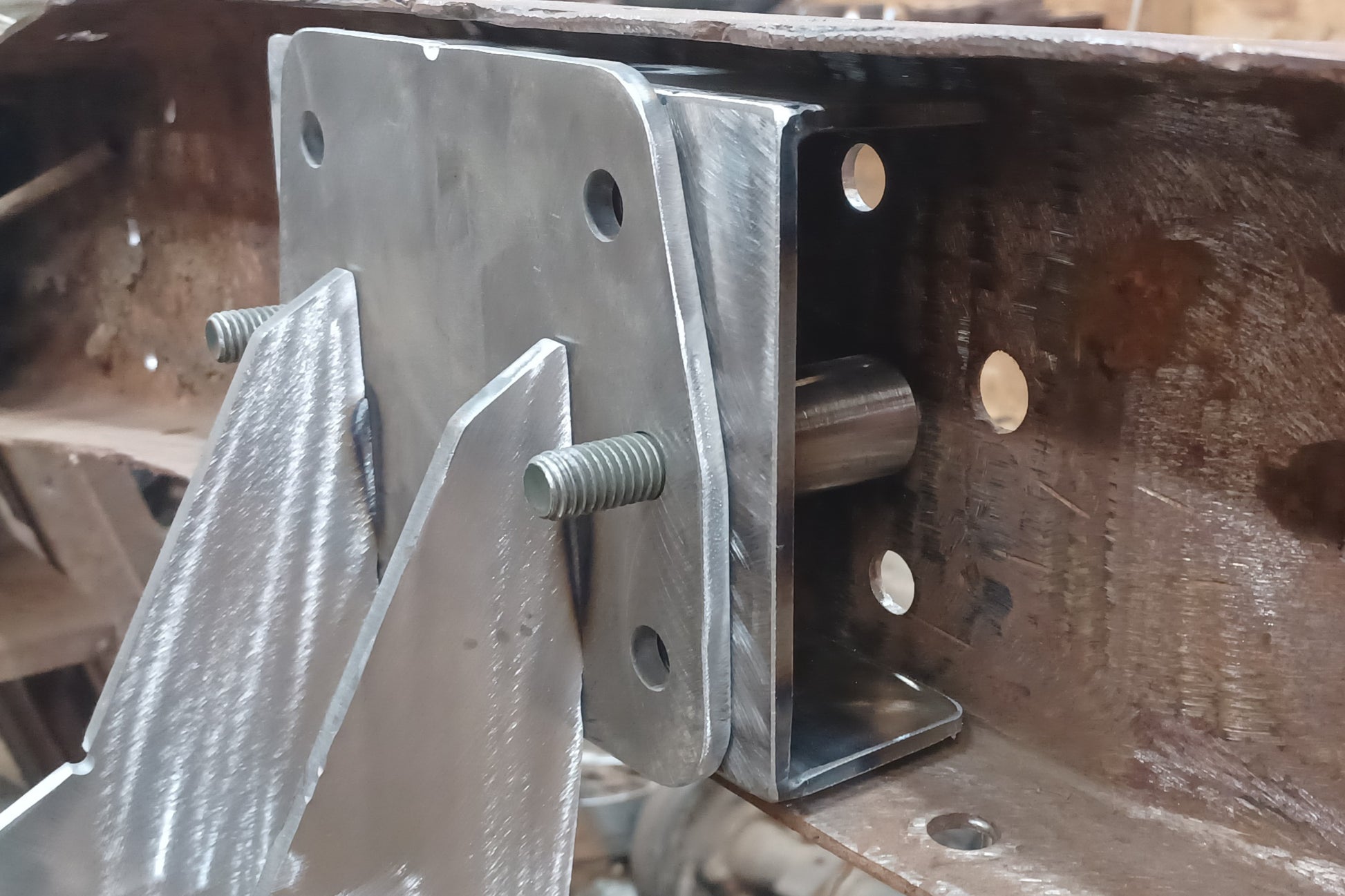

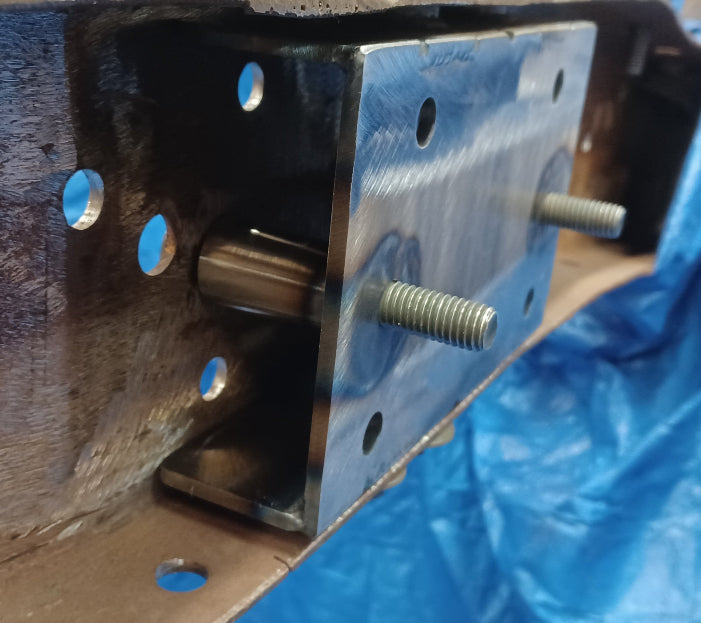

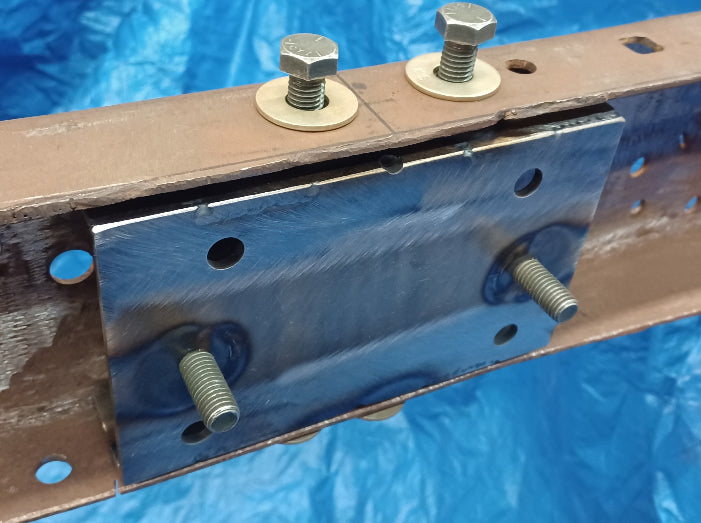

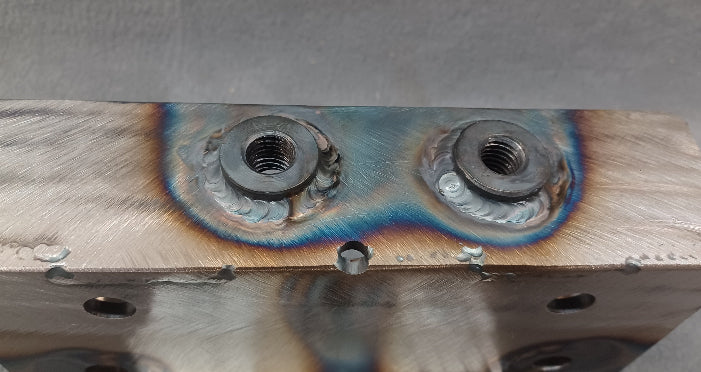

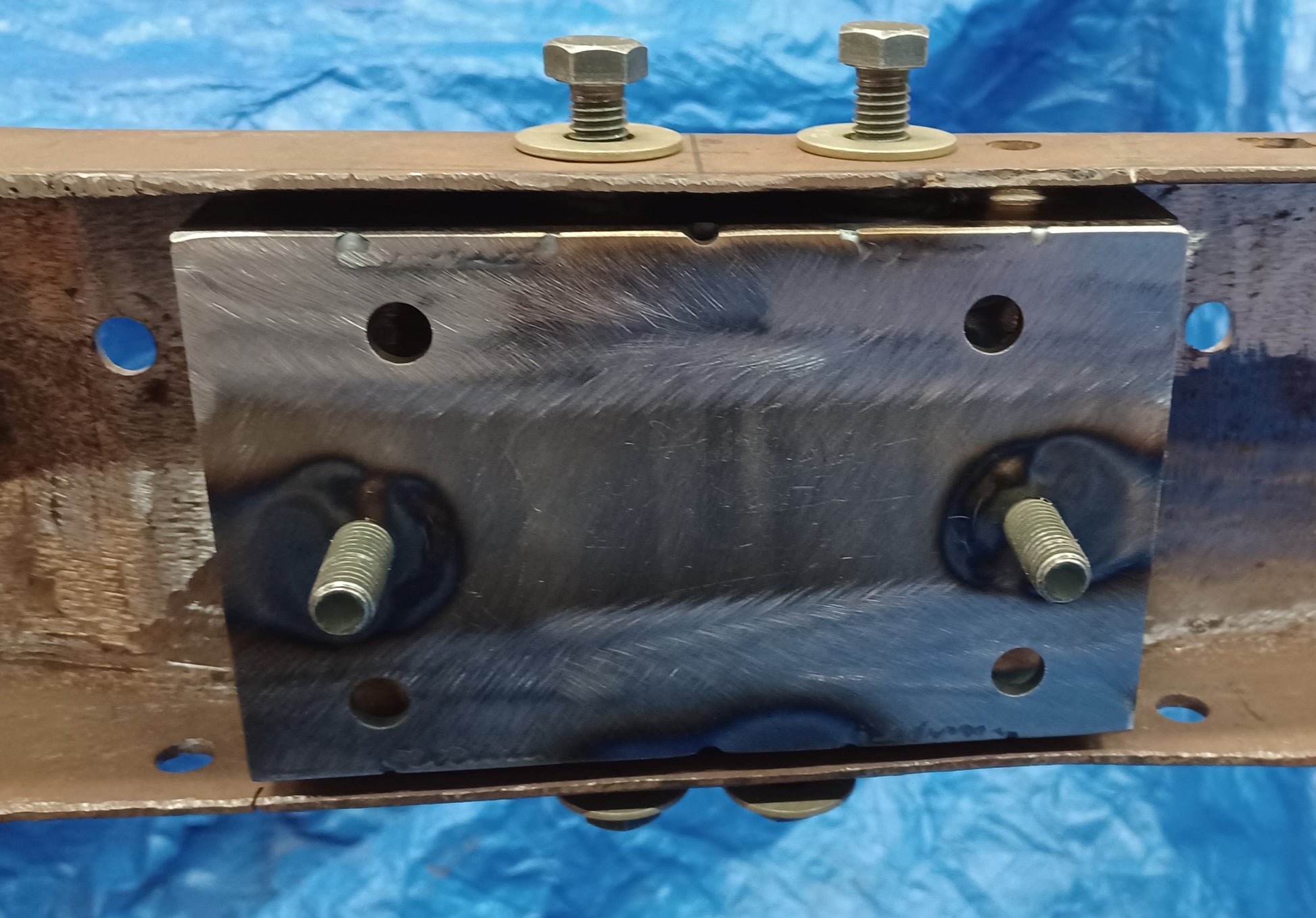

These boxes line up with the 6 holes in the side of the frame, two on top and two on bottom of the 65-79 F-100 chassis. These holes are already in the F-100 frame and just need to be reamed to a true 1/2" hole. We also make these for 53-64 chassis and 73-79 chassis. They have threaded bungs in top and bottom so you're not fishing nuts and washers inside the frame. Just screw the bolts in and go.
The Crown Vic narrow crossmember complete set is:
1. FRAME BOXES (bolts in frame to secure main section to frame) #501 2. Main Crossmember (main center section of the crossmember set) #500 3. Rear Arm Bushing Mount (holds the lower control arm rear bushing) #502 4. Upper control arm mount - factory struts (mounts upper control arms to frame and mounts factory strut to top frame plate) #505 OR 4. Upper control arm mount - coilovers or airbags (mounts only upper control arms to frame. Also needs a mount for cilover or airbag. #506 AND 5. Coilover frame mount (Mounts coilover to frame) #506-C OR 5. Airbag frame mount (Mounts airbag to frame) #506-B
